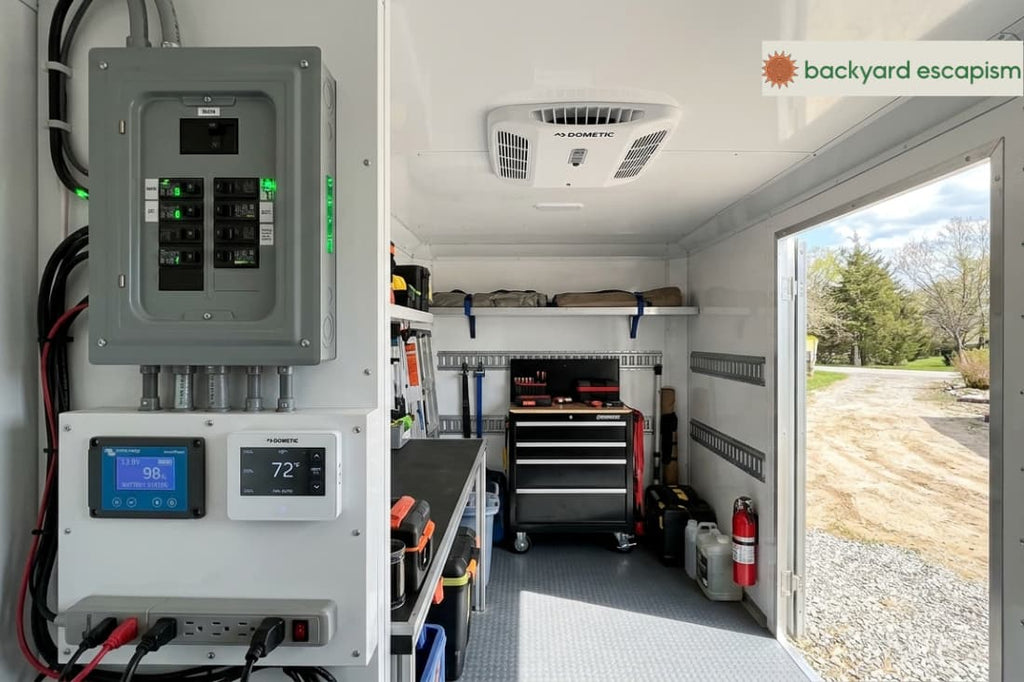

A well-designed electrical and climate system turns an enclosed trailer from a simple box into a functional, comfortable, and reliable space. It provides power for tools, lights, and devices while keeping a safe temperature for people and cargo.
Designing a balanced mobile power grid requires careful load calculation rather than guesswork. This guide breaks down circuit topology, battery storage capacities, and climate integrations based on field installations to ensure your mobile build operates safely under heavy field conditions.
Keep reading to learn how to combine power and climate control into one dependable trailer system.
Trailer Power & Climate Control: The Essentials First
These key points explain the foundation of a reliable trailer electrical and climate setup, helping you avoid common mistakes that lead to poor performance or safety issues.
- Your power demands shape the entire system: Calculate the total wattage for lights, tools, appliances, and devices before choosing batteries, solar, or generators.
- Efficiency starts with insulation and airflow: Good insulation and ventilation reduce strain on heating and cooling systems, improving comfort and energy use.
- Safe installation is critical: Correct wiring, proper circuit protection, secure mounting, and certified electrical connections help prevent fires, equipment damage, and injury.
Installing Solar on an Enclosed Race Trailer
Adding solar panels to a race trailer gives you renewable energy to keep your batteries charged for important tasks. Many owners planning an enclosed race trailer solar setup focus on balancing battery storage with weekend power demands.
It's a good way to run lights, small tools, and charge devices without constantly using a generator. A common and effective setup for a smaller system uses two 100-watt panels.
These panels connect to a charge controller, which manages the power flowing into your battery bank. A standard dual-panel 200W solar array interfaces efficiently with a 30-amp Pulse Width Modulation (PWM) charge controller.
Routing this system into a 100Ah Lithium Iron Phosphate ($LiFePO_4$) battery bank yields 1.2 kilowatt-hours (kWh) of usable energy, keeping continuous 12V lighting, an exhaust fan, and secondary utility chargers online across a typical 48-hour race weekend without hitting critical discharge thresholds.
It's important to install everything carefully. The holes in the roof for the mounting brackets need to be sealed well to prevent leaks. The panels and their mounts also need to be strong enough to handle highway speeds and vibration, so they don't get damaged or come loose.
Choosing the Best Interior Lighting for Enclosed Trailers
The most efficient and practical choice for trailer interior lighting is a 12-volt LED system. LED strips or fixtures give bright, clean light while using very little power from your battery. This low energy use is their main advantage over older halogen or incandescent bulbs.
To optimize work area visibility, mount 12V LED fixtures directly at the wall-to-ceiling junction angled down at 45 degrees. This prevents tool racks and tall cargo from casting shadows over workspaces.
Always isolate your wiring topology into independent, switched branch circuits so you can run task-specific illumination without draining the auxiliary battery bank unnecessarily.
This lets you light only the area you're using, which saves power. For example, you could have one switch for general workshop light and another for light near a workbench.
You can run the wiring neatly behind interior trim for a clean look. The low power draw of LEDs means you can have plenty of light without needing a very large battery or running a generator constantly.
Exploring Generator Mounting Options for Trailers
Mounting a generator securely and safely is important for both running it and moving it. Different generator mounting options can affect airflow, tongue weight balance, and long-term vibration resistance.
The three most common spots are on the trailer tongue, at the rear, or on a custom shelf inside a special compartment.
Tongue-mounted generator configurations optimize service accessibility and balance trailer hitch weight distribution. This installation requires a structural steel carrier frame rated explicitly to support up to 300 pounds of constant dynamic loading at highway speeds.
Any outside mounting must consider a few things. The generator needs enough airflow so it doesn't overheat. Its fuel lines and parts should be shielded from road spray and sunlight.
Safety is a big concern. The generator should be mounted away from any possible fuel spills near the trailer's hitch or from other exhaust fumes. For security and weather protection, a locking cage or box is a very good idea.
The way it's mounted also needs to handle the vibration and bumps from driving. This keeps bolts and fasteners from coming loose over time.
Understanding a 12V Wiring Diagram for an Enclosed Trailer
A clear wiring diagram is the plan for a safe and working trailer electrical system. The center of most setups starts with a 7-way RV connector at the trailer's hitch. This plug connects to your tow vehicle for brake lights, turn signals, and often a 12V power line to charge the trailer's battery while you drive.
From here, power gets sent where it's needed. The 12V power line usually goes through a fuse to protect it, then to a battery charger if you have one.
The main part of the 12V system is a fused distribution panel. This panel takes power from your battery bank and sends it through separate fuses or breakers to different circuits. These circuits can power things like interior LED lights, USB ports, a fan, or an electric tongue jack.
As highlighted by the Code of Federal Regulations
"Each conductor must be No. 22 AWG or larger. Conductors in power and lighting circuits must be No. 14 AWG or larger. Conductors must be sized so that the voltage drop at the load terminals is not more than 10 percent." - Code of Federal Regulations
All wiring must use the right size for the amount of power it will carry and how far it has to go. This prevents power loss and keeps wires from getting too hot.
A proper ground connection for the whole system is also essential. It keeps things safe and makes sure everything works reliably.
Following a Shore Power Inlet Installation Guide
Installing a shore power inlet lets you plug your trailer into standard external power sources, like a household outlet or a campground hookup.
This provides strong power for high-demand devices, air conditioners, and battery charging. For a typical trailer setup, a 30-amp inlet is a common choice.
The installation follows a clear order for safety:
- Pick a Location: Choose a spot on the trailer's outside that is easy to reach but shielded from direct road spray.
- Mount the Inlet: Cut the right-sized hole, mount the inlet, and seal it thoroughly to keep water out.
- Run the Wire: Use at least 10 AWG wire to connect the inlet to your trailer's internal power distribution panel. This wire carries a lot of current, so secure it and protect it from rubbing.
- Connect to the Panel: The power panel holds the main circuit breaker for the shore power line. It may also include a converter to change AC power to DC for charging your batteries.
- Keep Systems Separate: It's very important to keep the AC shore power wiring completely apart from your trailer's own 12V DC wiring. This prevents confusion and dangerous electrical problems.
The Maryland Code of Regulations (Title 11, Subtitle 14, Chapter 11.14.05.10) reinforces these same electrical safety standards for trailers:
In a recent analysis by MD Code Reg 11.14.05.10
"Wiring shall be well insulated. Connections shall be tight and secure. Reject vehicle if: Wiring insulation is bare, cracked, or broken; Shows evidence of burning or short-circuiting; Connections are loose or show signs of excessive corrosion." - MD Code Reg 11.14.05.10
Evaluating HVAC Options for Enclosed Trailers
Choosing a heater or air conditioner depends on your power and how much room you have. You have three main choices: roof-mounted RV AC units, portable ACs, and ductless mini-splits. A roof-mounted RV AC is a popular pick for many trailers.
Putting in a rooftop unit needs a special hole in the roof and strong support to hold its weight. It needs its own 115-volt power plug, usually from an outside outlet or a generator. It also needs a 12V wire for its temperature control.
Portable ACs are easier to put in. They just need a vent hole, but they don't work as well and take up floor space. Ductless mini-splits are very good at both cooling and heating. They need a pro to install an inside and an outside unit, with special lines between them.
Your choice depends on your budget, your space, and where your power comes from.
Selecting the Best Battery Bank for an Enclosed Trailer
The battery bank stores power for everything in your trailer when you're not plugged in or using a generator. Selecting the best battery bank often comes down to balancing usable capacity, charging speed, and trailer weight.
You can use old-style lead-acid batteries, but the newer, better kind is called Lithium Iron Phosphate (LiFePO4).
LiFePO4 batteries have big advantages:
- More Usable Power: They give you more power than a lead-acid battery of the same size. You can use more of their power without hurting them.
- Lighter Weight: They are much lighter. This is a big help in a trailer because weight is important.
- Longer Lifespan: They last for many more times of charging and using.
The main things to consider are:
- Higher Upfront Cost: They cost more to buy initially.
- Cold Sensitivity: They are sensitive to very low temperatures while charging.
Sizing Your Battery Bank:
When figuring out what size you need, start by adding up the total energy you expect to use between chances to recharge, like overnight or during a day at the track. This calculation will tell you the Amp-hour (Ah) capacity you need to keep your lights, fans, and devices running.
Estimating Electric Tongue Jack Upgrade Cost
Switching from a manual to an electric tongue jack makes hitching and leveling your trailer much easier. The cost includes the parts and maybe paying someone to install it.
A good electric jack costs between $150 and $300. The price depends on how much weight it can lift and if it has features like an automatic stop or a remote.
Putting it in is usually simple if the new jack fits the old one's spot. You need to:
- Safely support the trailer.
- Take off the old jack.
- Connect the new jack's wires to your trailer's 12V battery using a fuse.
- Bolt it on.
You can do it yourself in less than an hour with basic tools.
If you pay a pro, the labor cost depends on the shop, but it's often a big part of the total price. It's a good investment for the ease and safety it gives you, especially with a heavy trailer on bumpy ground.
How to Find a Certified Trailer Electrician Near You
For complex installations involving high-current shore power, inverter systems, or integrated climate control, hiring a certified professional is the safest choice.
A qualified electrician makes sure your system works and follows electrical codes, which is important for safety and insurance.
Finding a Certified Trailer Electrician:
Look for professionals who specialize in RV, marine, or mobile vehicle electrical systems. These technicians have specific experience with the dual 12V/120V systems, battery banks, and special grounding needs in trailers.
How to Find One:
- Use reputable online directories that check credentials, like the Better Business Bureau (BBB) or Angi.
- When you contact a potential electrician, ask direct questions about their experience with trailer solar setups, inverter wiring, and HVAC systems.
- Ask for references or photos of previous trailer projects.
A true specialist will understand how to build a system that is both strong enough for the road and safe for you to use.
FAQ
How do climate controls improve indoor comfort and energy efficiency?
Climate controls regulate Temperature Control, humidity measurement, and air distribution inside homes, vehicles, and commercial construction spaces.
Modern HVAC systems use fan control, cooling modes, and thermal management to maintain stable indoor conditions while reducing electric demand.
Efficient climate controls also help lower energy costs and reduce pressure on electrical systems during extreme weather conditions.
Why are electrical panels important for HVAC systems?
Electrical panels distribute power safely to air conditioners, resistance heater units, and other HVAC systems.
Circuit breakers, voltage regulator components, and stable DC bus voltage management help prevent Electrical Failure problems.
Proper electrical services also protect climate control board systems, fan output equipment, and standby generator connections from overloads and power fluctuations.
What should homeowners check before installing air conditioning systems?
What must be evaluated prior to installing a trailer rooftop AC unit? Technicians must verify that the trailer's framing includes an engineered 14-inch roof structural opening capable of supporting a 70 to 100-pound static load.
Additionally, ensure the shore power distribution panel includes a dedicated 20-amp circuit breaker to handle the compressor's inductive inrush current during startup cycles.
An In-Home Energy Audit can identify insulation gaps, excessive heat radiated areas, and rooms with unusually high electric demand.
How do advanced HVAC systems improve energy performance?
Modern HVAC systems improve efficiency through thermal analysis, variable speed 48VDC technology, and automated Climate Control System settings. Features such as geothermal heating and cooling systems, balanced fan output, and optimized cooling modes help reduce energy waste.
Many systems also include preventative maintenance alerts, smoke and carbon monoxide detectors, and digital monitoring tools for safer operation.
Why is regular electrical maintenance important for climate systems?
Regular electrical services help identify damaged solder points, worn circuit breakers, and overheating electrical panels before serious failures occur. Preventative maintenance also protects HVAC systems, Level 2 chargers, and security systems from unstable power conditions.
Routine inspections improve safety requirements compliance, maintain reliable air conditioning performance, and reduce unexpected Electrical Failure risks during peak usage periods.
Create a Trailer Setup Built Around Your Lifestyle
A well-designed enclosed trailer becomes more than transportation. It is a custom mobile solution that supports your workflow, protects your equipment, and delivers dependable comfort wherever the road takes you. When built around your real needs, the result is greater efficiency, flexibility, and long-term reliability.
For premium craftsmanship and lasting performance, explore the 24ft Ultimate Auto & Toy Hauler from Backyard Escapism. Ready to create your ideal setup? Start with a Get Your Custom Trailer Quote consultation.
