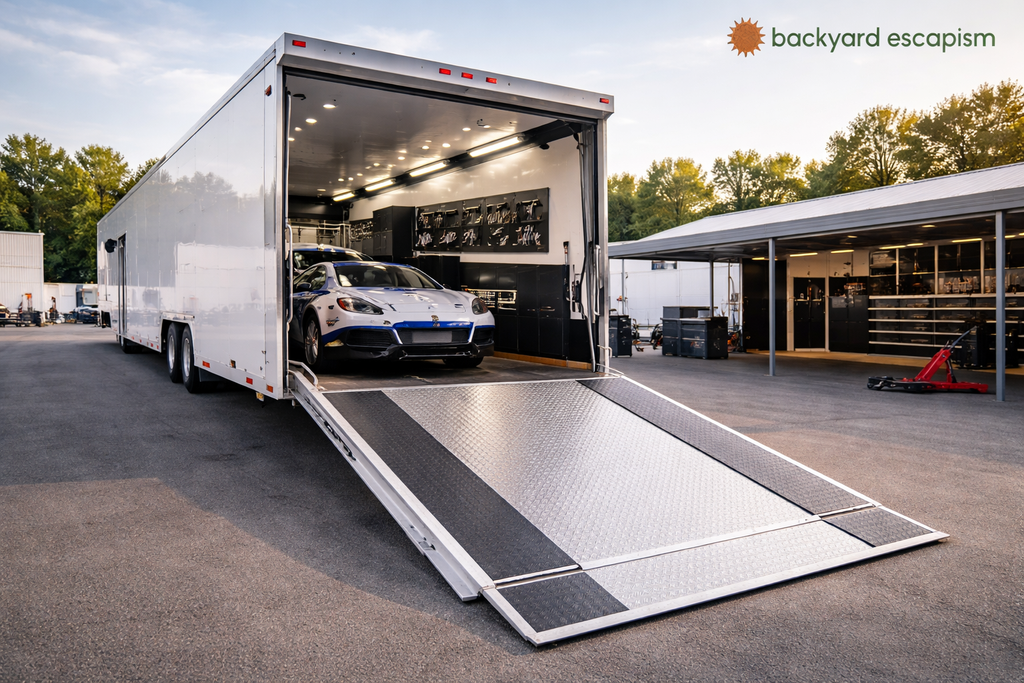

Order Fifth Wheel Race Trailer Specs: Complete Guide

Ordering a fifth wheel race trailer starts with defining the exact specifications that match how we plan to use it.

We need to align dimensions, weight capacity, and system features with our vehicle and equipment to avoid fit issues and safety risks.

A well-planned spec ensures smoother transport, better workflow, and fewer adjustments after delivery. When we take time to plan each detail, we reduce long-term problems and improve overall usability.

Keep reading to understand the key specifications we should confirm before placing an order.

Fifth Wheel Race Trailer Ordering Essentials

Before we go into details, these are the most important points we must understand when ordering a trailer.

• We must define dimensions first to ensure our vehicle and equipment fit properly.

• We must match weight ratings and axle setup to our real load, not estimates.

• We must plan electrical, storage, and workspace layout based on how we operate at the track.

Complete Fifth Wheel Race Trailer Specification Checklist Before Ordering

We need a clear and structured checklist so we do not miss important details during the ordering process. This helps us avoid costly mistakes later.

Core Dimension Specifications You Must Confirm

Before anything else, we must define the space inside and outside the trailer so everything fits the way we expect.

• Overall length vs usable interior length

• Interior width and wall-to-wall clearance

• Interior height and headroom

• Side wall height and ceiling structure

• Gooseneck and kingpin length

We should always measure our vehicle, tools, and working space needs first before deciding on final dimensions.

Exterior Size and Transport Compliance Specs

We also need to make sure the trailer meets road rules and towing limits for safe travel.

• Overall height for road clearance

• Legal width limits

• Ground clearance for ramps

• Ramp clearance and approach angles

These details help us avoid problems during transport and keep everything within safe limits.

Chassis, Load Capacity, and Axle Configuration Specs

The chassis and axle setup play a major role in how the trailer handles weight and movement on the road.

Weight Ratings and Load Calculations

We must calculate weight carefully based on what we actually plan to carry.

• GVWR (Gross Vehicle Weight Rating)

• Payload capacity based on real cargo

• Kingpin weight distribution

According to the Occupational Safety and Health Administration (OSHA), “employers must ensure that equipment is used within its rated capacity to prevent failure and accidents,” which directly applies to trailer load limits and safe towing practices.

If we rely on rough estimates, we increase the risk of unsafe towing and long-term wear.

To better understand how each weight rating affects trailer performance and safety, we can break down the key terms clearly.

Axle and Suspension Specifications

We need to choose the right axle and suspension system based on our load and usage.

• Axle rating per axle

• Axle placement for proper balance

• Torsion vs leaf spring suspension

• Heavy-duty vs standard setups

Torsion suspension usually offers a smoother ride, while leaf springs are more straightforward and durable.

Brake and Wheel System Specs

We must make sure the trailer can stop safely and handle long trips.

• Electric brake systems

• Wheel size and tire rating

• Hub and bearing strength

Electric brakes are commonly used because they provide consistent control while towing.

Ramp and Access System Specifications

Loading and unloading should feel safe and easy every time we use the trailer.

Rear Ramp Door Specifications

We need to match the ramp design with the type of vehicle we are transporting.

• Ramp length and angle

• Ramp width compatibility

• Spring-assisted or hydraulic system

• Material strength such as aluminum or steel

A longer ramp helps reduce the loading angle, which is useful for low-clearance vehicles.

Side and Access Door Configuration

Extra access points can make daily use more convenient.

• Side door placement

• Door opening size

• Tool access doors

This setup helps us move efficiently without needing to open the main ramp every time.

Trailer Body Construction and Structural Specs

Credit: etrailer

The overall structure affects how durable and reliable the trailer will be over time.

Wall, Roof, and Frame Construction

We should select materials based on both strength and weight.

• Aluminum or steel frame

• Wall thickness and reinforcement

• Roof strength for walking or light storage

Aluminum is lighter, while steel provides added strength but increases weight.

Exterior Finish Options

The outer finish affects both maintenance and appearance.

• Smooth aluminum panels

• Corrugated panels

• Vinyl wrap or raw finish

Smooth panels are easier to clean and maintain over time.

Insulation and Climate Protection Specs

We should consider how temperature and moisture affect our equipment.

• Wall insulation type

• Ceiling insulation

• Moisture control

Good insulation helps protect tools and electronics from heat and humidity.

Flooring and Interior Surface Specifications

The floor needs to support heavy loads and constant use without wearing out quickly.

Floor Structure and Load Rating

We must confirm the floor can handle the total weight of our cargo.

• Load-bearing capacity

• Reinforced subfloor

This is especially important when transporting vehicles and heavy equipment.

Flooring Material Options

Different materials offer different benefits depending on how we use the trailer.

• Aluminum tread plate

• Rubber coin flooring

• Epoxy-coated surfaces

Rubber flooring adds grip, while aluminum is known for strength and durability.

Interior Paneling and Finish

We should choose interior surfaces that are easy to clean and maintain.

• PVC or aluminum panels

• Composite materials

• Easy-clean finishes

This helps keep the trailer functional and organized over time.

Electrical, Power, and Lighting System Specs

We need a stable power system to run tools, lights, and other equipment inside the trailer.

Electrical System Configuration

We should plan how power will be distributed throughout the trailer.

• Shore power options such as 30A or 50A

• Circuit panel layout

• Outlet placement

Good planning helps prevent overload and supports safe use. For a broader view of how electrical systems fit into a full trailer plan, we can review this custom enclosed trailer design guide.

Battery and Generator Specs

We may need backup power depending on where we use the trailer.

• Battery capacity

• Generator compatibility

• Backup systems

This is useful when external power is not available.

Interior and Exterior Lighting Specs

Lighting should support both work tasks and general visibility.

• LED interior lighting

• Task lighting for work areas

• Exterior floodlights

Proper lighting improves safety and makes work easier.

Climate Control and Comfort System Specs

Managing temperature inside the trailer helps protect equipment and improve working conditions.

HVAC System Configuration

We should select systems based on climate and how often we use the trailer.

• Roof-mounted air conditioning

• Heating options

• Ventilation systems

Airflow is important to prevent heat buildup.

Insulated vs Non-Insulated Use Cases

We need to decide based on how we plan to use the trailer.

• Short-term vs extended use

• Equipment sensitivity to temperature

Insulated trailers are more suitable for longer use or extreme weather.

Functional Storage and Workspace Configuration

A well-organized layout helps us work more efficiently during events.

Tool Cabinet and Storage Specs

Storage should keep tools secure and easy to reach.

• Built-in cabinets

• Modular storage systems

• Lockable compartments

We can explore different layouts and cabinet setups in this race trailer tool cabinet options guide.

Tire Rack and Equipment Storage

We need space for larger items and spare parts.

• Tire rack placement

• Spare parts storage

• Fluid storage safety

Good placement helps prevent movement during transport.

Pit Area Layout Planning

We should design the interior to support a smooth workflow.

• Workbench placement

• Entry and exit flow

• Lighting placement

For a deeper look at layout planning, we can review this race trailer pit area design guide.

Living Quarters and Office Configuration (Optional)

Some setups benefit from added comfort and workspace features.

Living Quarters Specifications

We can include basic living features for longer events.

• Sleeping area

• Bathroom setup

• Separation from garage space

This setup is helpful for multi-day use.

Office and Command Center Setup

We may need a dedicated area for planning and monitoring.

• Desk layout

• Monitoring systems

• Comfortable seating

This helps us stay organized during operations.

Kitchen and Utility Specs

Simple utilities can improve convenience during longer stays.

• Compact kitchen

• Refrigerator

• Water system

These features support daily needs while on-site.

We can also learn more about overall layout strategy in this race and car hauler configuration guide.

Hitch, Stability, and Towing Interface Specs

We must ensure the trailer connects properly to our towing vehicle.

Fifth Wheel Hitch and Kingpin Specs

Proper fit between trailer and truck is essential.

• Kingpin height

• Hitch compatibility

• Turning clearance

Incorrect setup can affect stability while towing.

Stabilizer and Leveling Systems

We need the trailer to stay stable when parked.

• Manual or electric jacks

• Auto-leveling systems

• Parking support

This creates a safer and more stable working environment.

Communication and Data Wiring Specifications

Modern setups often require reliable communication systems.

Data and Network Setup

We may need connectivity for monitoring and coordination.

• Ethernet wiring

• WiFi setup

• Camera systems

This supports better communication during events.

Power and Data Integration Planning

We should keep wiring organized and protected.

• Cable routing

• Protective channels

• Expandable setup

This allows us to upgrade systems later if needed.

How to Submit Your Fifth Wheel Race Trailer Spec Sheet (Order Process)

We need to prepare clear and complete information before requesting a build or quote.

Information You Need Before Requesting a Quote

We should gather all key details in advance.

• Vehicle dimensions

• Equipment list

• Usage frequency

Accurate information helps reduce changes later.

Custom Build vs Standard Spec Package

We need to choose the right approach based on our needs.

• Custom build for specific requirements

• Standard package for simpler setups

The right choice depends on how detailed our setup is.

Final Spec Review Checklist Before Order Confirmation

We must review everything carefully before final approval.

• Dimension accuracy

• Load calculations

• System compatibility

According to Inbound Logistics, weight ratings like GVWR represent “the highest permissible weight a vehicle can safely handle,” reinforcing why final checks are critical before ordering.

Downloadable Fifth Wheel Race Trailer Spec Form

Using a structured form helps us organize and review all specifications clearly before placing an order.

What’s Included in a Professional Spec Sheet

A complete spec sheet keeps everything clear and documented.

• Dimensions and layout

• Weight and load details

• System configuration

This document becomes our main reference during the build process.

How to Use the Spec Sheet for Accurate Quotes

We should use the spec sheet to communicate clearly and reduce confusion.

• Reduce miscommunication

• Avoid missing details

• Speed up the process

Clear documentation helps ensure the final result matches what we planned.

FAQ

We often have common questions when planning specifications, especially before placing a final order.

What specs matter most when ordering a fifth wheel race trailer?

The most important specs include dimensions, weight capacity, axle configuration, and ramp design. These directly affect safety, usability, and compatibility with our vehicle.

How do we choose the right trailer size?

We should base size on our vehicle dimensions, storage needs, and workspace requirements. Measuring everything in advance helps avoid space issues later.

What is GVWR and why does it matter?

GVWR is the maximum total weight the trailer can safely handle. It includes the trailer itself and all cargo, making it critical for safe towing.

Should we choose torsion or leaf spring suspension?

Torsion suspension offers a smoother ride, while leaf spring systems are simpler and easier to maintain. The choice depends on how we use the trailer.

Do we need a custom spec or standard package?

If our setup is specific or complex, a custom build is more suitable. Standard packages work well for simpler and more general use cases.

Order Fifth Wheel Race Trailer Specs with Confidence

A well-defined fifth wheel race trailer setup gives us more than just transport. It creates a mobile solution that fits our exact needs, improves daily efficiency, and holds up over time.

When every detail is planned with purpose, we get a trailer that supports how we work, not one we have to adjust later.

If we want to see what a premium build looks like, we can explore the 24ft Ultimate Auto & Toy Hauler from Backyard Escapism. If we are ready to design something specific to our needs, we can start here: Build Your Ideal Trailer Today.

References

1. https://www.inboundlogistics.com/articles/gawr-vs-gvwr/

2. https://www.osha.gov/laws-regs/regulations/standardnumber/1926/1926.602

Related Articles

• https://backyardescapism.com/blogs/the-escapist/custom-enclosed-trailers-custom-enclosed-trailer-design-guide

• https://backyardescapism.com/blogs/the-escapist/race-and-car-hauler-configuration-optimizing-space-and-efficiency

• https://backyardescapism.com/blogs/the-escapist/custom-race-trailer-tool-cabinet-options

• https://backyardescapism.com/blogs/the-escapist/how-to-design-a-race-trailer-pit-area
