A shore power inlet installation guide helps us safely connect external AC power to RVs, campervans, trailers, and boats. It creates a secure entry point where electricity from a campground or marina flows into the electrical system through a sealed, weather-resistant inlet.
This setup allows us to run appliances, charge batteries, and support onboard systems more reliably. When installed correctly, it improves safety, protects wiring from moisture and wear, and supports long-term performance.
At Backyard Escapism, we understand the value of reliable mobile solutions built for real use. Keep reading as we walk through planning, wiring, mounting, and safety steps for a dependable setup.
Shore Power Inlet Installation Essentials
Before we move into installation, it helps to understand the core ideas that shape a reliable shore power setup. These points keep the process simple and focused.
Shore power systems work best when wiring, grounding, and weather protection are handled carefully from the beginning.
-
Shore power inlet allows safe transfer of external AC power into RVs, trailers, campervans, and boats
-
Correct wiring and grounding help maintain safe and stable electrical flow
-
Weatherproof mounting and sealing support long-term reliability outdoors
These three ideas support every stage of the installation process.
What Do We Need to Understand Before Getting Started?
Before installation begins, we need to understand what a shore power inlet does and how it fits into the overall electrical system. A shore power inlet acts as the connection point between an external power source and the inside electrical setup. It helps us safely bring electricity into the vehicle or boat without exposing internal wiring to outside conditions.
For RVs, trailers, and campervans, shore power becomes especially useful when parked for longer periods or staying at campgrounds with electrical hookups.
What Is a Shore Power Inlet and How Does It Work?

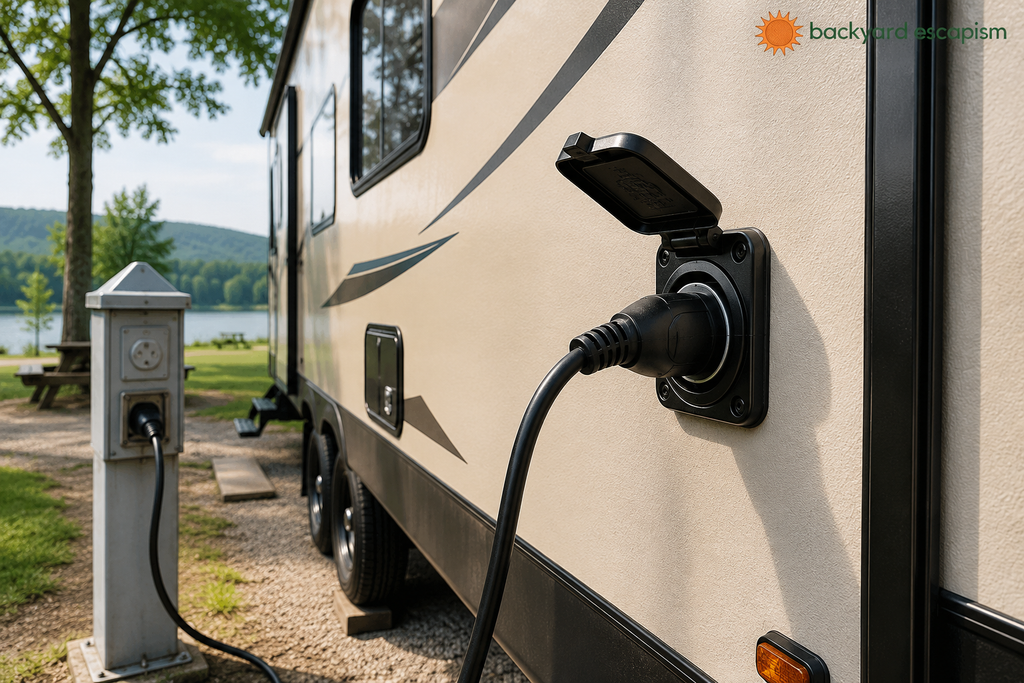

A shore power inlet is a weather-sealed electrical socket installed on the exterior of a vehicle or boat. We connect a shore power cable from an outside power source directly into the inlet, allowing electricity to move safely inside.
Once power enters the inlet, it usually passes through a breaker panel or inverter system before reaching outlets, appliances, or battery chargers. This process helps manage electrical flow and protects the system from overload.
For many owners using Custom Enclosed Trailers, a shore power inlet can improve daily convenience by supporting tools, charging systems, and equipment while stationary.
Shore Power Inlet Quick Comparison
|
Type |
Best For |
Typical Power Use |
|
30A Shore Power Inlet |
Smaller RVs, campervans, trailers |
Basic appliances and charging |
|
50A Shore Power Inlet |
Larger RV systems |
Higher-demand appliances |
|
Marine Shore Power Inlet |
Boats and marinas |
Dockside electrical systems |
Choosing the correct type depends on how much electricity we plan to use and the type of setup we already have.
Common Use Cases in RV, Campervan, and Marine Systems
Shore power systems support different travel and work environments. While the goal stays the same, electrical demand may change depending on how we use the vehicle or trailer.
Before reviewing common setups, it helps to remember that different environments create different installation needs.
-
Campervan shore power systems support battery charging and light appliance use while parked
-
RV shore power systems connect to campground power for heating, cooling, and household appliances
-
Boat shore power systems connect safely at marinas for onboard electrical support
-
Trailer shore power systems support mobile workshops and equipment charging
In many cases, these systems also work alongside Electrical and Climate Control setups to help maintain comfort and reliable operation in changing weather conditions.
Choosing the Right Amperage (30A vs 50A Shore Power Inlet)
Choosing the correct amperage affects how much electricity we can safely use at one time. A 30A inlet is common for smaller electrical systems, while a 50A inlet supports heavier energy demand.
We need to match the inlet size with the breaker panel, wiring, and expected appliance load. A mismatch can create overheating risks or poor system performance.
Tools, Materials, and Safety Preparation for Installation
Credit: Moser Makes
Before installation begins, preparing the correct tools and materials helps make the process smoother and safer. Good preparation reduces mistakes and helps us avoid damaging electrical parts.
Essential Tools for Shore Power Inlet Installation
We use several basic tools to create clean cuts and secure wiring connections. The right tools also help prevent installation errors.
Before gathering tools, we should remember that inaccurate drilling or poor wire preparation can lead to sealing problems later.
-
Hole saw for inlet cutout preparation
-
Drill for pilot hole drilling and mounting
-
Wire stripping tool for clean electrical connections
-
Multimeter for voltage and continuity testing
-
Cable gland tools for sealed cable entry
Each of these tools supports a safer and more reliable installation.
Recommended Electrical Components and Wiring
Choosing durable materials matters because shore power systems face vibration, movement, and outdoor weather.
Before selecting materials, it is important to understand that wire size affects both safety and electrical performance.
-
Marine-grade triplex wire for durability
-
10 AWG triplex wire for most standard 30A systems
-
Stranded copper cable for flexibility
-
Circuit breaker panel for protection
-
GFCI protection for safer operation
Anyone working with trailer electrical systems may also benefit from reviewing a 12v wiring diagram enclosed trailer setup to better understand how power flows between circuits.
“Electrical safety depends heavily on proper grounding, overcurrent protection, and following installation standards for mobile electrical systems.” - National Fire Protection Association (NFPA)
Safety Standards Before Installation
Electrical safety should always come first. Before we begin physical work, we should confirm that all systems are powered down and isolated.
Taking a few minutes for safety checks helps reduce preventable risks.
-
Confirm ground fault protection is active
-
Perform reverse polarity checks
-
Test voltage before touching wiring
-
Prepare a basic electrical safety checklist
Step-by-Step Shore Power Inlet Installation Process
Once tools and materials are ready, we can move into the installation itself. Taking the process slowly often leads to better long-term results.
Planning Inlet Location and Exterior Mounting
The location of the inlet affects both ease of use and durability. We want a spot that stays accessible but also protected from heavy water exposure.
Before choosing placement, we should think about cable routing and wall strength.
-
Exterior wall mounting for easy access
-
Recessed installation for added protection
-
Surface mount installation for simpler setup
-
Inlet flange alignment for secure positioning
Good placement also supports future maintenance and easier troubleshooting.
Cutting, Drilling, and Preparing the Mounting Area
Careful measuring makes installation easier. Small mistakes during cutting may create sealing gaps or mounting problems.
Before drilling, double-check measurements and template alignment.
-
Drill pilot holes before cutting
-
Use an inlet cutout template
-
Remove sharp edges through deburring
-
Clean the mounting surface thoroughly
“Proper planning and safe electrical installation practices help improve long-term system reliability and reduce preventable failures.” - U.S. Department of Energy
Mounting the Shore Power Inlet Securely
Once the opening is ready, we install the inlet using screws and sealing materials.
Before tightening anything permanently, check fitment and alignment.
-
Tighten mounting screws evenly
-
Add cable strain relief where needed
-
Apply silicone sealant around the inlet edge
-
Install a weatherproof cover
A secure mount helps protect the inlet from movement and moisture over time.
Shore Power Wiring Guide for Safe Electrical Connection
Wiring is one of the most important parts of the installation. Even a strong mount will not matter if wiring is done incorrectly.
Understanding AC Wiring Diagram and Color Codes
Electrical wiring usually follows standard color coding to avoid confusion and reduce mistakes.
Before connecting wires, we should confirm each conductor is identified correctly.
-
Black wire for hot power
-
White wire for neutral connection
-
Green wire for grounding safety
These color standards help create consistency during troubleshooting and maintenance.
Connecting the Shore Power Inlet to Electrical System
The inlet connects to a breaker panel or inverter charger system depending on the setup.
Before connecting wires, we must confirm all electrical power is fully disconnected.
-
Connect inlet to breaker panel
-
Support inverter charger hookup for battery charging
-
Add transfer setup between power sources when necessary
Terminal Connections and Wiring Best Practices
Clean connections improve safety and system reliability.
Before securing terminals, make sure wire stripping is even and connections are tight.
-
Tighten terminal screws carefully
-
Use insulated wire connector terminals
-
Route wires neatly away from sharp surfaces
Weatherproofing and Long-Term Protection
Shore power systems spend time outdoors, so protection from weather is important.
Sealing the Installation Properly
Water resistance starts with proper sealing.
Before applying sealant, clean and dry the mounting surface completely.
-
Use silicone sealant around openings
-
Add watertight electrical seals
-
Check for gaps around mounting edges
Preventing Corrosion and Environmental Damage
Metal hardware can wear over time if left exposed.
Before protecting surfaces, remove dirt and moisture buildup.
-
Apply corrosion prevention coating
-
Protect exposed hardware from rust
-
Inspect external fittings regularly
Ensuring Durability in Outdoor Conditions
Routine maintenance helps the system stay reliable.
-
Check locking inlet covers
-
Inspect weatherproof cover condition
-
Review external connection points regularly
FAQ
What size shore power inlet should we choose?
Most smaller setups use a 30A shore power inlet, while larger RV systems may require 50A for higher electrical demand.
Can we install a shore power inlet ourselves?
Yes, but we should understand basic electrical safety and wiring. If the system feels too complex, professional help may be safer.
Does a shore power inlet work with battery charging?
Yes. Many systems connect to inverter chargers that allow batteries to recharge while plugged into campground or marina power.
Do we need weatherproof protection?
Yes. Outdoor electrical systems should always include sealing and protective covers to reduce moisture risks.
Why should we follow a wiring diagram?
A proper wiring diagram helps us avoid mistakes and understand how electrical flow moves through the system safely.
Final Thoughts on Shore Power Inlet Installation
A shore power inlet setup helps bring external power safely into RVs, campervans, trailers, and boats. With proper wiring, secure mounting, and weather protection, it supports long-term reliability and safer use in real conditions.
