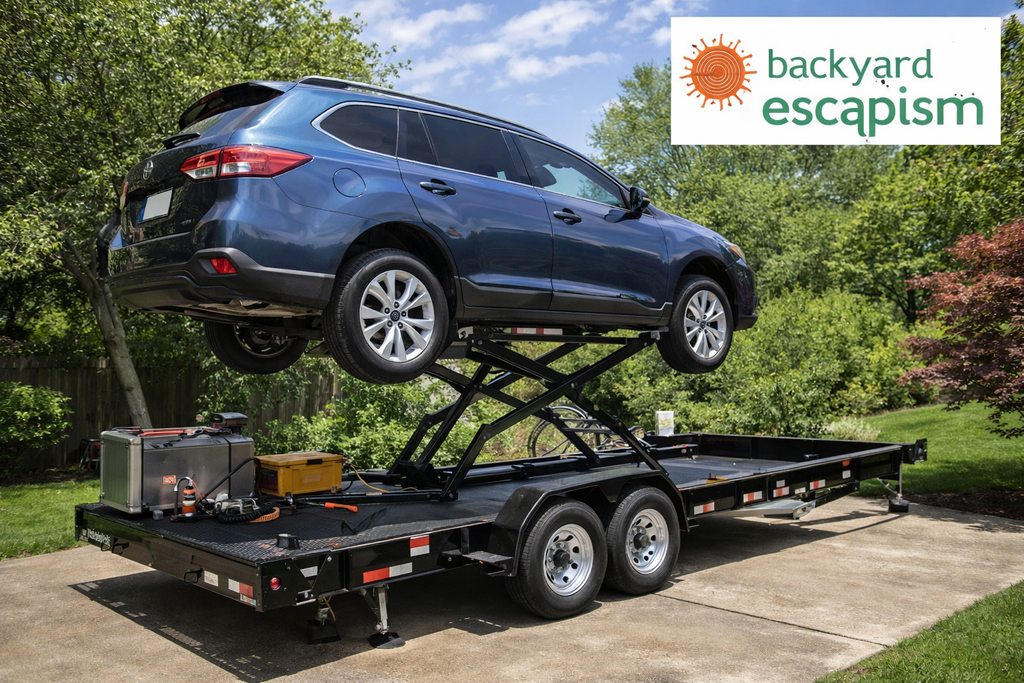

Designing a car lift trailer setup requires planning the trailer frame, lift structure, hydraulic capacity, and safety systems.
When designed correctly, the trailer can lift vehicles safely while maintaining stable towing performance.
Reinforced frames, balanced weight distribution, and accurate lift measurements help reduce mechanical stress and improve reliability during mobile automotive work.
A well-planned setup also improves workflow by allowing smooth vehicle loading and easier access to workspace.
Every component, from runway width to axle capacity, contributes to stability and usability.
Keep reading to learn how each component works together to create a reliable car lift trailer setup.
Essential Principles for Designing a Car Lift Trailer Setup
Designing a car lift trailer requires planning the frame structure, lift mechanics, and power systems together to maintain stability and safe lifting conditions.
-
A reinforced trailer frame prevents structural flex when lifting heavy vehicles.
-
Hydraulic capacity and correct post spacing help keep vehicles stable during lifting.
-
Balanced axle load and proper tongue weight maintain safe towing conditions.
Planning the Trailer Foundation
The trailer foundation acts as the base that supports the entire lifting system. Without a strong base, the lift cannot operate safely.
Car Lift Trailer Foundation Design
A strong foundation begins with a rigid steel trailer frame. Structural rails should be thick enough to carry both the lift equipment and the vehicle weight during operation.
Load-bearing mounting points are usually positioned near reinforced frame sections. These points anchor the lift columns securely to the trailer.
Chassis Reinforcement Specifications
Reinforcing the trailer chassis helps distribute load forces during lifting.
Common reinforcement methods include:
-
Cross member reinforcement beneath lift mounting areas
-
Frame flex prevention through thicker support beams
-
Torque tube stability to keep lift columns aligned
These reinforcements help prevent long-term structural fatigue.
Lift Mounting Options
Lift systems can be installed using different mounting approaches.
Two common options include:
-
Freestanding base design that allows easier installation and removal
-
Bolt-down installation method that anchors the lift permanently to the trailer frame
Correct assembly torque specifications are important to ensure bolts remain secure during repeated lifting cycles.
Lift Structure and Column Configuration
Credit: Summit Racing
The lift structure supports the vehicle weight and must fit inside the trailer dimensions.
Determining Correct Post Spacing
Post spacing determines how the vehicle sits on the lift. If the columns are too close together, vehicle doors may not open fully. If they are too far apart, structural balance may be reduced.
Correct spacing should account for:
-
Typical vehicle width
-
Door clearance during maintenance
-
Available trailer interior space
Low Profile Column Height for Trailer Use
Trailer ceilings limit the vertical space available for lift columns. Low profile columns allow the lift to fit inside enclosed trailers without hitting the roof structure.
This design helps maintain safe lifting height while still fitting within the trailer enclosure.
Lift Motion Components
Several mechanical components ensure smooth lift movement.
Important motion components include:
-
Column slider mechanism that guides the lift carriage
-
Cable pulley configuration that distributes lifting force evenly
These systems keep the lift balanced during operation.
Hydraulic Lift System Design
Hydraulic systems generate the force needed to raise vehicles.
Selecting the Right Hydraulic Lift Capacity
The lift capacity rating should exceed the weight of the vehicles we expect to lift. This extra margin helps prevent overload and extends equipment life.
Typical design planning includes evaluating vehicle types, expected loads, and lifting frequency.
Hydraulic Cylinder Engineering
Hydraulic cylinders create the lifting force.
Important factors include:
-
Cylinder diameter sizing that determines lifting strength
-
Hydraulic fluid capacity that maintains pressure stability
Larger cylinders can generate greater lifting force but require stronger structural support.
Hydraulic Safety Systems
Hydraulic systems require protection features to ensure safe and reliable operation. According to the Automotive Lift Institute (ALI), certified lifts must undergo rigorous third-party testing to verify structural integrity and proper function of these safety mechanisms. As ALI notes,
“Rigorous third‑party testing to validate structural integrity and proper function of safety mechanisms.” - ALI Safety Standards
Key safety components include:
-
Pressure relief valve that releases excess hydraulic pressure
-
Overload protection sensor that stops lifting when limits are exceeded
-
Emergency lower system that allows safe descent during power loss
These mechanisms reduce the risk of sudden mechanical failure.
Runway Design for Vehicle Support
The lift runway supports the vehicle tires during lifting.
Steel Runway Structural Strength
Steel runway sections provide strong support for vehicle weight. The runway must distribute loads evenly across the lift structure.
Strong steel construction helps prevent bending during lifting operations.
Adjustable Runway Width
Vehicles vary in width, so adjustable runways allow the lift to accommodate different wheel track sizes.
Adjustable rails improve versatility when servicing multiple vehicle types.
Runway Safety Features
Safety features help keep the vehicle stable during lifting.
Important safety elements include:
-
Non-slip runway surfaces that improve tire grip
-
Edge guard protection that prevents tires from rolling off
-
Wheel chock positioning that stabilizes the vehicle before lifting
These features help prevent accidental movement.
Lift Height and Clearance Planning
Lift height determines the amount of workspace beneath the vehicle.
Maximum Lifting Height Inside a Trailer
Inside an enclosed trailer, vertical clearance is limited. Lift height must be calculated so the vehicle can rise safely without contacting the roof.
The design must allow enough space for inspection and light maintenance work.
Drive-Through Clearance Measurements
Vehicles must be able to enter the trailer before lifting begins.
Drive-through clearance measurements ensure that:
-
Trailer door openings are tall enough
-
Vehicle roofs clear the entry space
Proper entry clearance prevents damage during loading.
Ground Clearance and Lift Indicators
Ground clearance must align with the ramp height and lift platform.
Load height indicators can also be installed to show the maximum safe lifting level during operation.
Integrating the Lift With the Trailer Structure
The lift system must work together with the trailer frame and axles.
Trailer Axle Integration
Axles carry most of the trailer weight during transport. The lift system should be mounted in a position that transfers load evenly across the axle structure.
This prevents overloading one section of the frame.
Tandem Axle Load Support
Tandem axle trailers are often used for lift setups because they distribute weight across two axles.
This configuration improves stability and increases load capacity.
Hitch and Tongue Weight Setup
The trailer hitch must support balanced tongue weight.
Proper tongue weight helps maintain stable towing behavior and improves braking control during transport.
Vehicle Loading System Design
Vehicles must be loaded safely before they can be lifted.
Aluminum Ramp Construction
Aluminum ramps are commonly used because they are strong yet lightweight.
The material resists corrosion and reduces the overall trailer weight.
Ramp Angle and Vehicle Entry
The ramp angle plays a critical role in vehicle compatibility, as vehicles with low ground clearance require shallower slopes to prevent damage during loading. According to Race Ramps, a 10.8-degree approach angle is generally the maximum slope that most standard performance vehicles can navigate safely without scraping the front fascia. As Race Ramps notes,
“A 10.8-degree approach angle is the typical maximum for standard performance cars to avoid front-end contact.” Race Ramps Vehicle Loading Guide
The table below summarizes the recommended ramp angles and materials for different vehicle types:
|
Vehicle Type |
Ramp Material |
Recommended Angle |
Notes |
|
Sports Car |
Aluminum |
10–12° |
Essential for low ground clearance; prevents scraping. |
|
Sedan |
Aluminum |
12–15° |
Standard entry angle for most passenger cars. |
|
SUV |
Steel |
15–18° |
Higher durability for heavier curb weights. |
|
Pickup / Truck |
Steel |
18–20° |
Steepest angle; often requires a winch assist for safety. |
This table allows operators and trailer designers to quickly choose the appropriate ramp setup for the vehicles they intend to lift. It also ensures that safety and efficiency are maintained during vehicle loading.
Winch Assisted Vehicle Loading
A winch system can help pull vehicles into the trailer.
Winches are useful when vehicles cannot move under their own power or require controlled positioning.
Power Supply for the Lift System
Lift systems require consistent electrical power to run hydraulic pumps.
Choosing the Right Power Unit
Power units must match the lift motor specifications. Electrical systems must deliver stable voltage to avoid motor strain.
Mobile Power Options
Common power solutions include:
-
12-volt battery setup for portable operation
-
110-volt power option when external electricity is available
-
Generator power supply for remote work environments
These options allow the lift to operate in different locations.
Electrical Protection Systems
Electrical components must be protected from environmental conditions.
Important protective features include:
-
Weatherproof electrical box that shields wiring
-
Ventilation fan cooling that prevents overheating
These systems improve long-term reliability.
Safety Systems for Car Lift Trailers
Safety systems reduce risk when lifting heavy vehicles.
Mechanical Safety Locks
Safety locks hold the lift in place once it reaches a certain height. These locks prevent the lift from lowering unexpectedly.
Trailer Safety Components
Trailer safety systems include:
-
Breakaway safety switch that activates if the trailer disconnects
-
Electric brake synchronization that balances braking between the vehicle and trailer
These components improve towing safety.
Lift Operation Controls
Operators must be able to control the lift safely.
Common control options include:
-
Remote control wireless operation
-
Wired pendant control for direct operation
-
Diagnostic LED panel that displays system status
These tools allow easier monitoring of lift performance.
Trailer Tires, Wheels, and Stability
Heavy loads require strong tires and stable wheel systems.
Heavy Duty Tire Upgrades
Upgrading to stronger tires increases load capacity and improves durability during transport.
Many lift trailers use 10-ply tires designed for heavy equipment.
Spare Tire and Emergency Access
A spare tire carrier should be mounted in an accessible location so replacements can be made quickly if necessary.
Trailer Stabilization Systems
When the trailer is parked, stabilization systems prevent movement during lifting.
These systems include:
-
Locking caster wheels for repositioning
-
Leveling jack placement for stable lifting conditions
Engineering Design and Installation Planning
Careful planning improves installation accuracy and long-term performance.
Digital Lift Design Modeling
Design software such as SolidWorks CAD modeling can help visualize the layout before construction begins.
This allows engineers to confirm clearances and structural connections.
Load and Weight Calculations
Weight distribution calculations ensure the trailer frame and axles can support the combined load of the lift and vehicle.
Proper calculations reduce the risk of structural overload.
Installation and Maintenance Planning
Planning installation in advance simplifies assembly.
Important preparation steps include:
-
Checking shipping crate dimensions for transport
-
Following the installation manual guide carefully
-
Designing maintenance access panels for future servicing
These steps make the system easier to maintain over time.
FAQ
What is a car lift trailer setup?
A car lift trailer setup is a mobile platform that allows vehicles to be lifted safely inside a trailer. It combines a reinforced trailer frame, hydraulic lift system, ramps, and safety features for vehicle loading, maintenance, or transport.
How much weight can a typical car lift trailer support?
Weight capacity depends on the hydraulic lift rating, cylinder size, and trailer frame strength. Most setups are designed to handle standard passenger vehicles, SUVs, or small trucks, with a safety margin to prevent structural overload.
What safety features are essential for a car lift trailer?
Key safety systems include mechanical safety locks, pressure relief valves, overload protection sensors, wheel chocks, non-slip runway surfaces, and proper axle weight distribution. These features prevent accidents and ensure reliable lifting operations.
Can a car lift trailer work without an external power source?
Yes. Many setups use a 12-volt battery system or onboard generator for mobile operation. However, 110-volt options or external power sources provide consistent lift speed and longer runtime for heavy-duty applications.
How do I ensure my trailer lift setup is stable during towing?
Balanced weight distribution, proper tongue weight, tandem axle support, and correctly mounted lift components all contribute to stability. Upgraded tires and brake synchronization also improve towing safety when transporting vehicles on the trailer.
A Mobile Workspace Built for Reliability
A car lift trailer is more than equipment. It’s a purpose-built mobile solution that combines safety, efficiency, and long-term reliability.
Thoughtful design, precise engineering, and reinforced structures ensure every lift is stable, cargo is protected, and operations run smoothly.
Investing in a custom trailer tailored to your workflow turns every job into a safer, more organized, and confident experience.
See premium construction in action with the 24ft Ultimate Auto & Toy Hauler at Backyard Escapism
Or start designing a trailer built exactly for your needs. Build Your Ideal Trailer Today
